Gravity Limit Switch

1650 INR/Piece

Get a Price/Quote

Product Details:

Rated Voltage 500 V AC Volt (V)
Product Type Limit Switch
Material Aluminum Die cast
Max. Voltage 500 V AC Volt (V)
Supply Ability : 5000 Piece Per Week
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Price 1650 INR/Piece
Minimum Order Quantity 10 Piece

Product Specifications

Rated Voltage 500 V AC Volt (V)
Max. Voltage 500 V AC Volt (V)
Product Type Limit Switch
Material Aluminum Die cast

Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID)
Supply Ability 5000 Piece Per Week
Delivery Time 3-4 Days
Main Export Market(s) Western Europe, Australia, North America, Eastern Europe, Middle East, Central America, South America, Asia, Africa

Product Description

Brand	Vraj Engineering
Current Rating	10 Amps and 40 Amps
Warranty	12 months company warranty
Material	Aluminum Die cast
Degree Of Protection	IP-55 IS/IEC-600529 : 2001
No.Of Auxiliary Contacts Nc	2
Rated Operating Voltage	500 VAC
Country of Origin	Made in India

Weight Operated Limit Switches are used on control / power circuit of reversing drives so as to limit their rotation / movement within a predetermined position. Operation:

When the snatch block of the crane reaches its top position the snatch block pushes a plate which is hanging from one end of the lever of the limit switch. Due to the weight placed on the other end of the lever this lever is pushed up. When the lever is pushed up the shaft to which this lever is connected rotates there by rotating the cams which eventually open the contacts and disconnect the motor. The electronic limit switch contacts are automatically reset when the lever returns to zero position due to gravitational force.

Other Products in 'Limit Switch' category

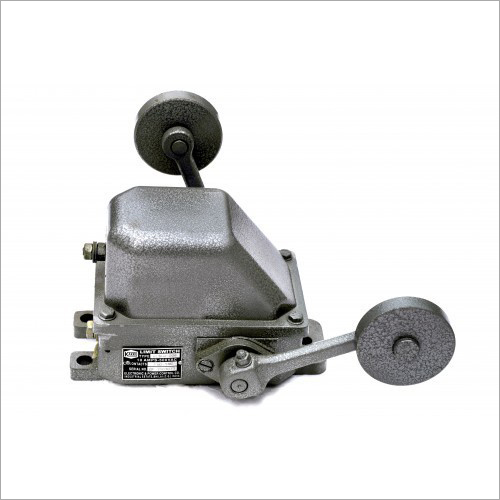

Double Roller Lever Operated Heavy Duty Limit Switch Material : Metal Product Type : Limit Switch Minimum Order Quantity : 5 Price : 6656 INR/Piece Size : 12 Foot Weight : 5002500 Milligram (mg)
