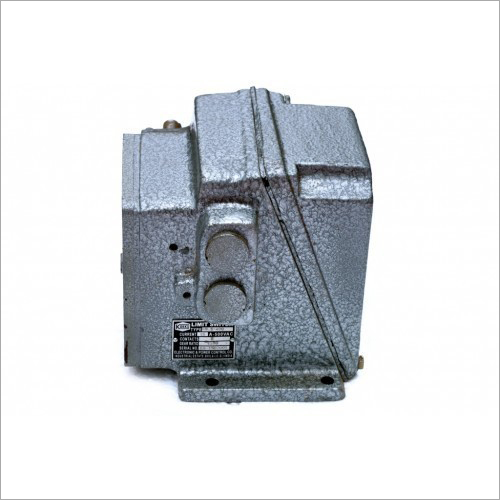

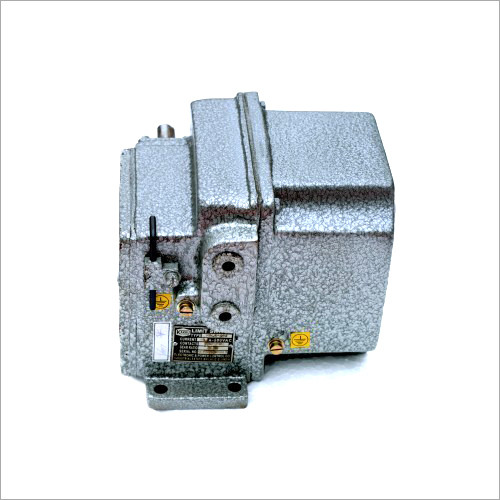

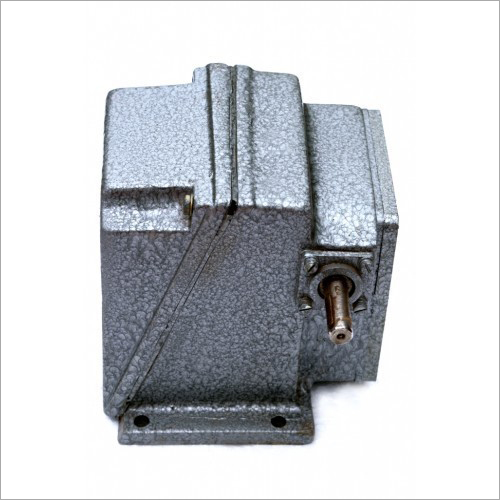

Spindle Type Rotary Gear Limit Switch Spindle Type Rotary Gear Limit Switch Spindle Type Rotary Gear Limit Switch Spindle Type Rotary Gear Limit Switch
Spindle Type Rotary Gear Limit Switch
Spindle Type Rotary Gear Limit Switch Spindle Type Rotary Gear Limit Switch Spindle Type Rotary Gear Limit Switch

Spindle Type Rotary Gear Limit Switch

9000 INR/Piece

Product Details:

  • Product Type Rotary Gear Limit Switch
  • Material Metal
  • Size 10-20 Inch
  • Supply Ability : 5000 Piece Per Week
  • Click to view more
X

Price And Quantity

  • 9000 INR/Piece
  • 5 Piece

Product Specifications

  • Metal
  • 10-20 Inch
  • Rotary Gear Limit Switch

Trade Information

  • Cash in Advance (CID), Cash Advance (CA)
  • 5000 Piece Per Week
  • 3-4 Days
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

Specification

Brand

KAKKU

Model Name/Number

KRLS TYPE

Current Rating

10 AMP. UP TO 500V AC

Degree Of Protection

IP-55

Number of Switch Positions

2 to 4

Power/Voltage

415 V

Ambient Operating Temperature

55 DEGREE C

Usage/Application

CRANE & HOIST


TECHNICAL FEATURES:
  • Operating mechanism = Spindle of the switch is coupled with rotating shaft of rope drum /gear box /motor
  • No. of contacts = 2
  • Rated voltages = Up to 500V AC or DC
  • Permissible cont. current = 10 AMPs
  • Breaking current = 1. 10V DC-0.5A
    2. 220V DC-0.3A
    3. 440V DC-0.1A
    4. 500V AC-10A
  • Contact breaks = Double breaks
  • Contact tips = Silver cadmium oxide
  • Enclosure = IP-55 (IP-65 can be provide on request)
  • Body = Cast iron body with Cast Aluminum cover
  • Electrical life = 2 lacks operations
  • Mechanical life = 5 lacks operations
  • Ambient Temperature = 55 degree centigrade
  • Permissible Switching = 600 operations per hour
GEAR RATIO :
  • 1:1, 1:10, 1:20, 1:30, 1:5, 1:50, 1:75
