Product Description

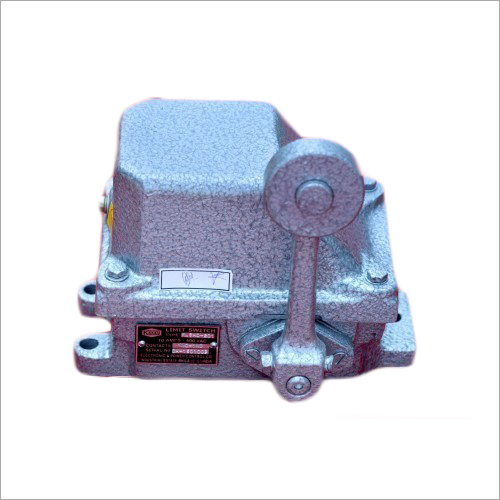

Roller Lever Operated Limit Switch
Specification
Brand | KAKKU |
Switch Type | Rotary Limit Switch |
Normal Position | Normally Closed (NC), Normally Open (NO) |
Application | CRANE, HOIST, CHEMICAL, PHARMACEAUTICALS |
TECHNICAL FEATURES:
- Operating mechanism : Roller lever
- No. of contacts : 4
- Action : Self return (Spring return)
- No of operating Position = 1-0-1
Contact ratings :-
- Rated voltages : Up to 500V AC or DC
- Permissible cont. current : 10AMP
- Breaking current : At 110 v DC -2.5 AMP, At 220v DC -1.5AMP, At 440v DC -0.5AMP ,At 500v AC -10AMP.
- Contact breaks : Double breaks
- Contact tips : Silver cadmium oxide
- Electrical life : 1.5 millions operations
- Enclosure : IP55
- Body : Cast Iron / Cast Al
- Mechanical life : 15 millions operation
- Ambient Temp. : 55 degree centigrade
- Permissible switching : 600 Operations per hour
